What Are The Properties Of Stiffness Matrix
It is an unstable element there fore the determinant is equal to zero. Stiffness matrix is symmetrical matrix.
Gate Ese Property Of Stiffness Matrix Offered By Unacademy

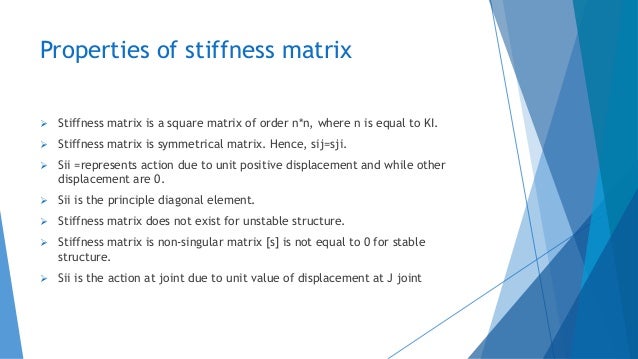

Properties of stiffness matrix Stiffness matrix is a square matrix of order nn where n is equal to KI.
What are the properties of stiffness matrix. A conservative-stiffness matrix in such spaces needs to satisfy both symmetric and exact differential criteria. The stiffness matrix is an inherent. List the properties of the stiffness matrix.
For element stiffness matrices there is no unique solution toq ku. The properties of the stiffness matrix are. In this paper we present fundamental properties of stiffness matrices as applied in analysis of grasping and dextrous manipulation in configuration spaces and linear Euclidean R33space without rotational components.
Stiffness coefficient is defined as the force developed at joint due to unit displacement at joint while all other joints are fixed. 18Why is the stiffness matrix method also called equilibrium method or displacement method. Mathematical Properties of Stiffness Matrices.
Element stiffness matrices can not be inverted. Write down the expression of shape function N and displacement u for one dimensional bar element. Stiffness Matrix The primary characteristics of a finite element are embodied in the element stiffness matrix.
17 rows 1713 the stiffness matrix is a symmetric matrix of order 33 which as can be seen. 30311 K e u e F e Where Κe is the element stiffness matrix ue the nodal displacement vector and Fe the nodal force vector. K is the 4x4 truss bar element stiffness matrix in global.
Define stiffness coefficient kij. A Linear b Zigzag c Diagonal d Rectangular Answer. It is a symmetric matrix The sum of elements in any column must be equal to zero.
All element stiffness matrices are singular. U N1u1N2u2 N1 1-X l N2 X l 3. State the properties of stiffness matrix It is a symmetric matrix The sum of elements in any column must be equal to zero It is an unstable element.

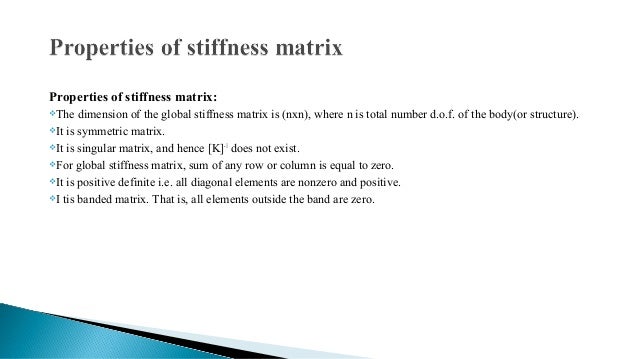

Problem I Answer the following questions a Write five properties of element stiffness matrix b Write five properties of structural stiffness matrix c Write five properties of the global stiffness matrix d Will subdividing a truss element into many smaller elements improve the accuracy of the solution. The element stiffness relation is. The properties of the stiffness matrix are.
Longitudinal stiffness is often characterized by EI or an effective EI where EI would be the modulus of elasticity times the moment of inertia for a homogeneous cross-section. In the stiffness matrix method nodal displacements are treated as the basic unknowns for the solution of indeterminate structures. It is a symmetric matrix The sum of elements in any column must be equal to zero.
Stiffness matrix represents system of linear equations that must be solved in order to ascertain an approximate solution to the differential equation. It is an unstable element there fore the determinant is equal to zero. X1Y1 is the location of joint 1 of the truss bar X2Y2 is the location of joint 2 of the truss bar EA is the product of the elastic modulus and the section area OUTPUT DATA.
For element stiffness matrices there is at least one non-trivial non-zero vector. The element stiffness relation is important because it can be used as a. The properties of Stiffness matrix in finite elements analysis.
The property of a stiffness matrix as the stiffness matrix is square and symmetric. So the determinant is equal to zero. Httpswwwamazoninshopmaheshgadwantikarrefac_inf_hm_vp E book.
The two primary stiffness properties that are considered when designing skis are the longitudinal flexural stiffness and the torsional stiffness about the longitudinal axis. Assemble the Element Equations to Obtain the Global or Total Equations and Introduce Boundary Conditions-We then show how the total stiffness matrix for the problem can be obtained by superimposing the. Compute the element stiffness matrix for a 2D truss bar in global coordinates INPUT DATA.

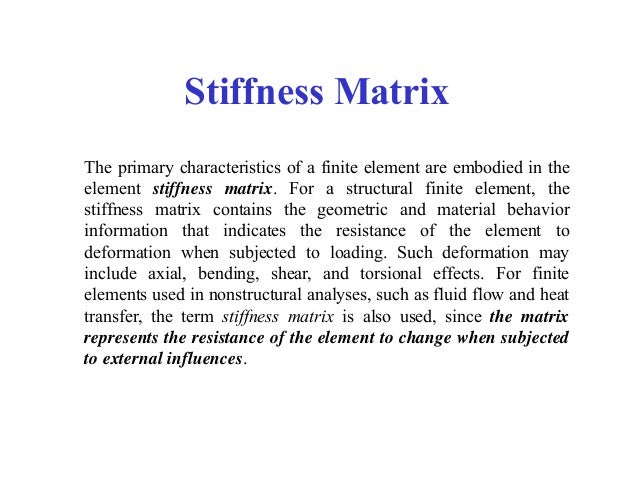

In stiffness matrix all the _____ elements are positive. For a structural finite element the stiffness matrix contains the geometric and material behavior information that indicates the resistance of the element to deformation when subjected to loading. Define the stiffness matrix for an element and then consider the derivation of the stiffness matrix for a linear-elastic spring element.
